Carbon Fiber Reinforced Carbon-Plastic Bipolar Plate

Product

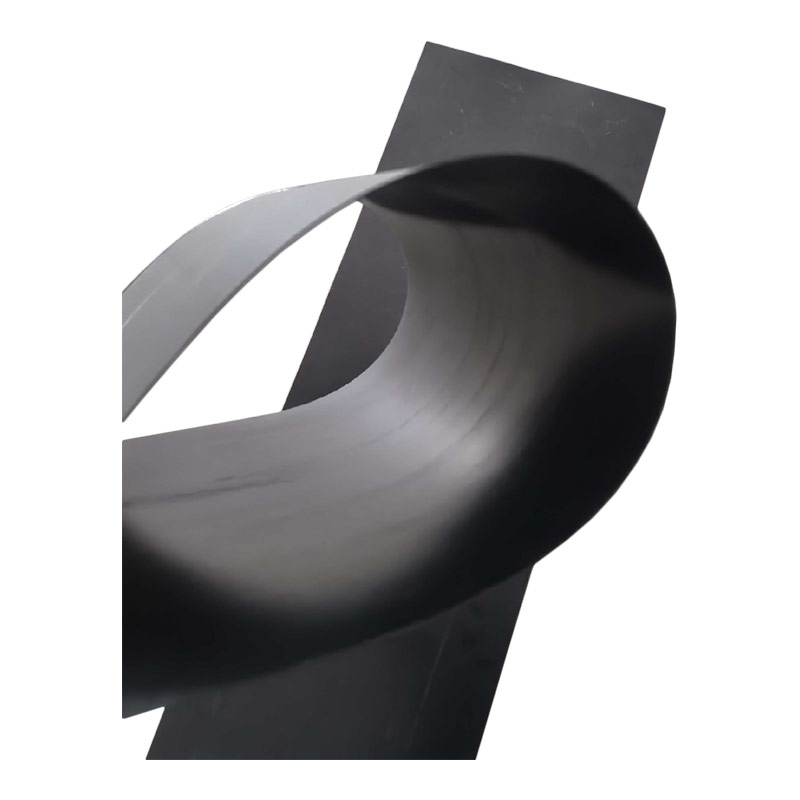

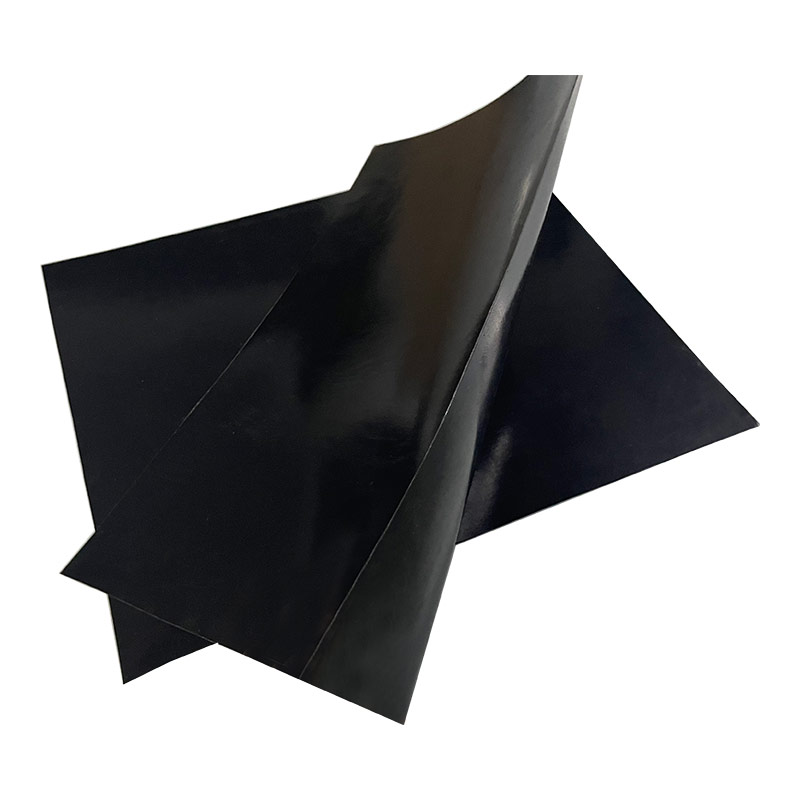

Our company's carbon bipolar plates are the first carbon fiber reinforced flexible graphite bipolar plates in the industry. They do not break even when bent at 360°, with a compressive strength of ≥ 200 Mpa and a flexural strength of ≥ 50 Mpa. At a pressure of 0.2 Mpa, the hydrogen permeability is < 5 x 10^-6 cm³/cm²·min. The electrical conductivity is > 30 S/cm. They can be applied in systems such as vanadium redox and zinc bromide.

Inquire Now

Carbon Fiber Reinforced Composite Flexible Graphite Bipolar Plate With Welded Edges

Carbon Fiber Reinforced Composite Flexible Graphite Bipolar Plate

Product Details
Contact Us

Name	Unit	Carbon fiber reinforced carbon-plastic bipolar plate
Thickness	mm	0.6/0.8
Density	g/cm³	1.4-1.6
Width	mm	≤900
Length	mm	≤1300
Extension strength	Mpa	≥50
Compressive strength	Mpa	≥100
Conductivity in the conductive area	S/cm	≥30
Electrical conductivity in the welding area	S/cm	≥30
Carbon content	%	≥60
Hydrogen transmission rate（0.2Mpa）	cm³/cm²·min	<5x10^-6
Corrosion current	A	<5x10^-6
