Carbon Fiber Reinforced Composite Flexible Graphite Bipolar Plate With Welded Edges

Product

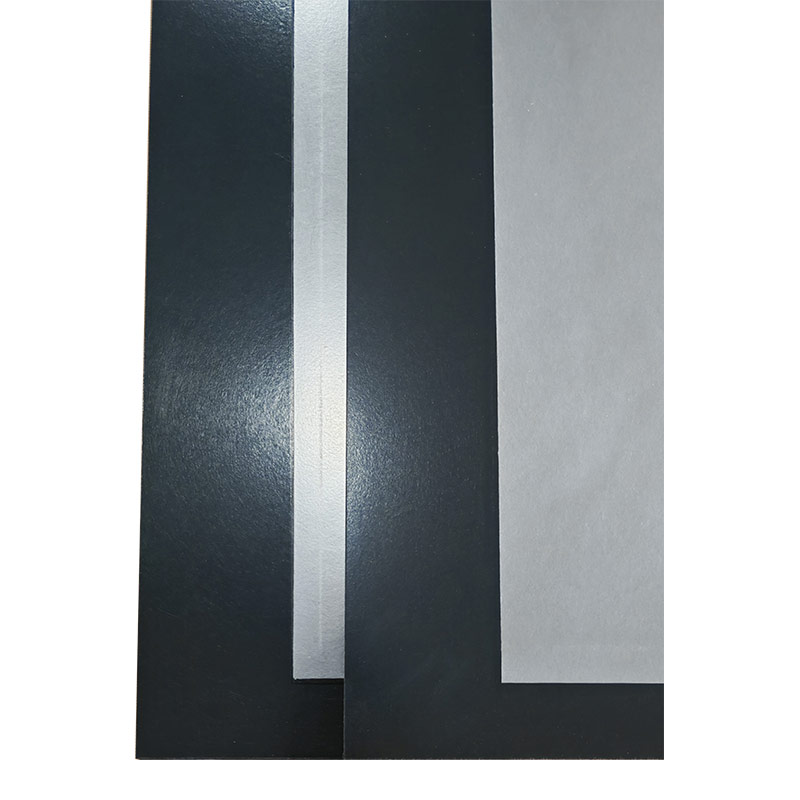

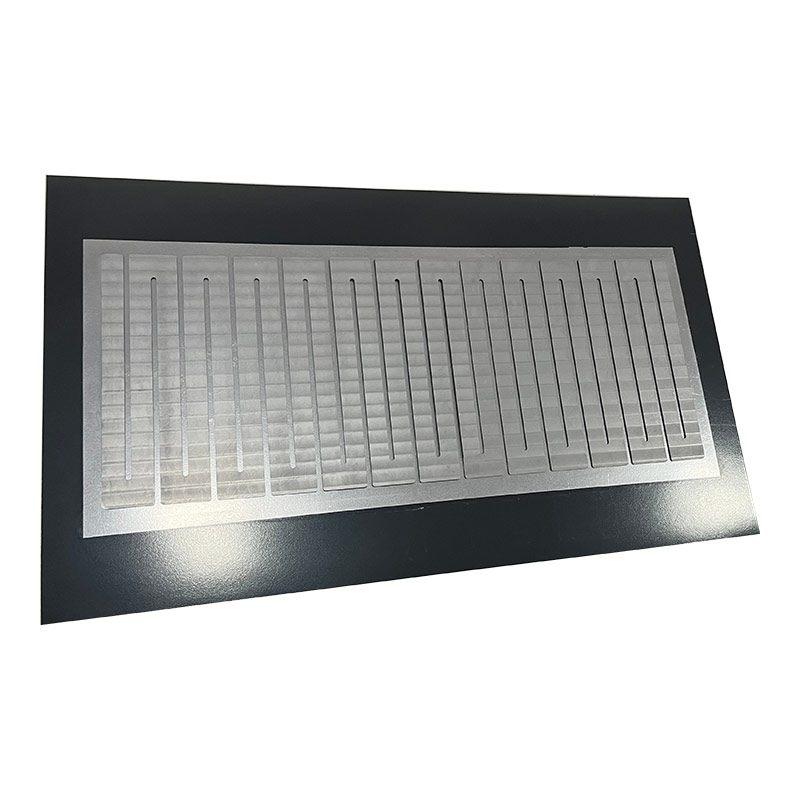

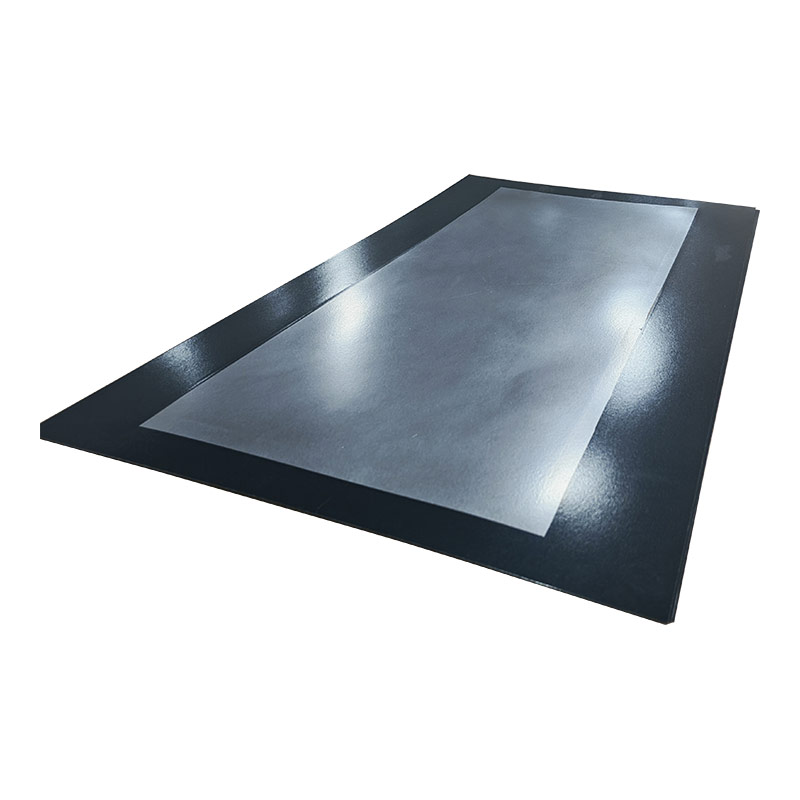

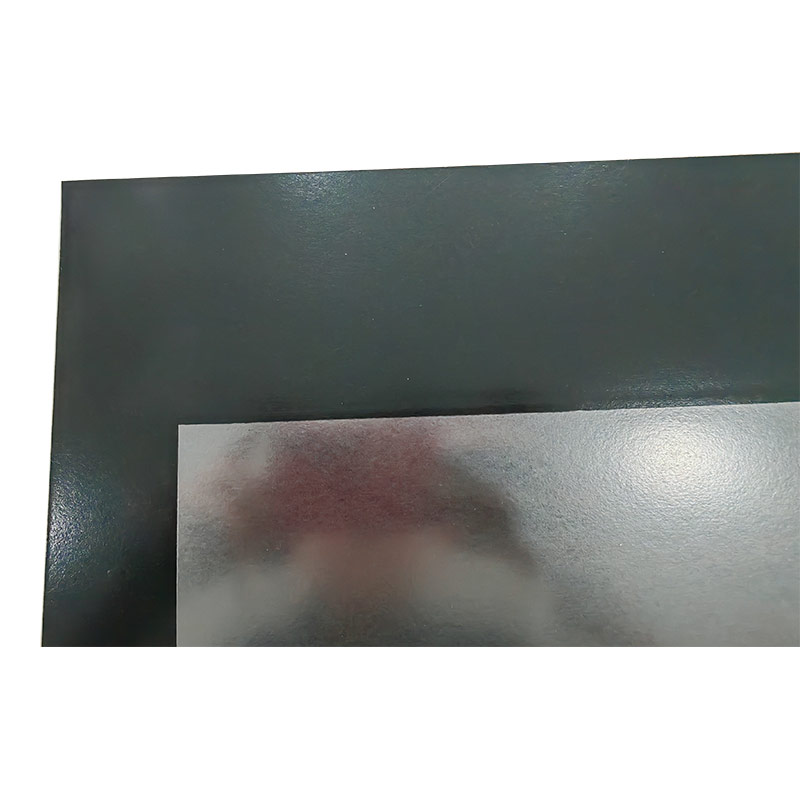

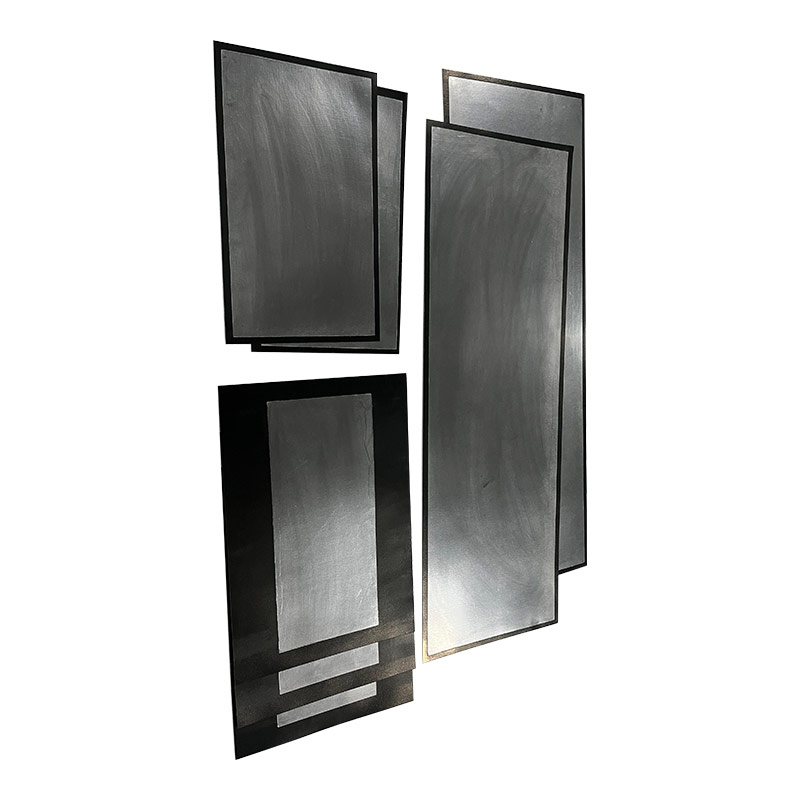

Based on the carbon fiber reinforced composite flexible graphite bipolar plate, by extending the internal carbon fiber framework, the middle area becomes the graphite reaction zone, while the surrounding areas are the plastic weldable zones.

Inquire Now

Basalt Reinforced Composite Flexible Graphite Bipolar Plate With Welded Edge

Carbon Fiber Reinforced Carbon-Plastic Bipolar Plate

Product Details
Contact Us

Name	Unit	Carbon fiber reinforced composite flexible graphite bipolar plate with welded edge
Thickness	mm	0.6/0.8
Density	g/cm³	1.4-1.6
Width	mm	≤850
Length	mm	≤1300
Extension strength	Mpa	≥50
Compressive strength	Mpa	≥100
Conductivity in the conductive area	S/cm	≥300
Electrical conductivity in the welding area	S/cm	0
Carbon content	%	≥80
Hydrogen transmission rate（0.2Mpa）	cm³/cm²·min	<5x10^-6
Corrosion current	A	<5x10^-6
