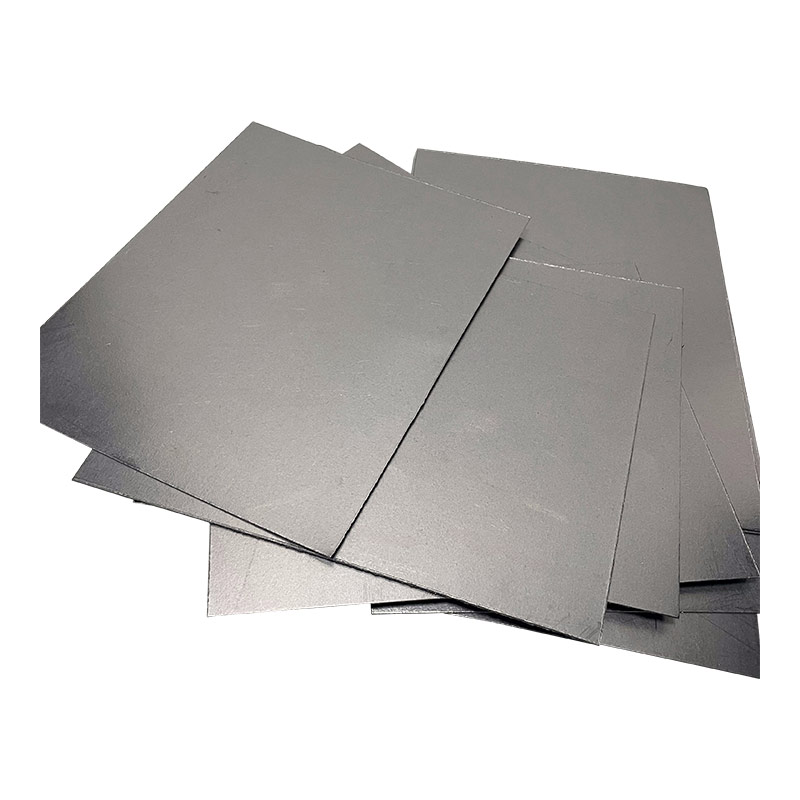

Carbon Fiber Reinforced Composite Flexible Graphite Bipolar Plate

Product

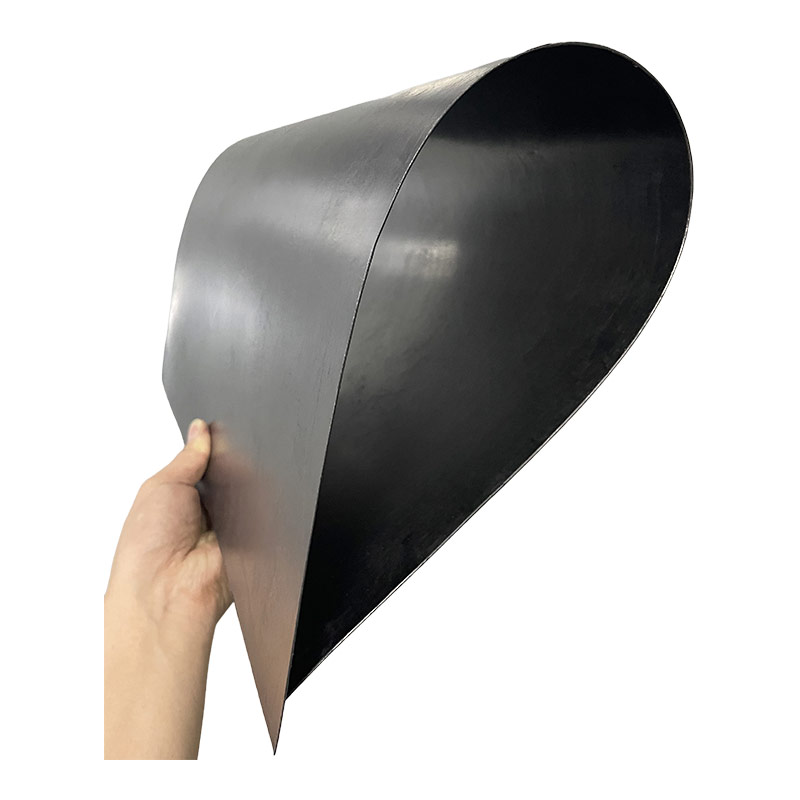

Our company's composite flexible graphite bipolar plate is the first carbon fiber reinforced flexible graphite bipolar plate in the industry. Under the condition of ensuring an electrical conductivity of over 320 S/cm, it does not break even when bent at 360°, with an anti-compression strength of ≥ 200 Mpa and an anti-bending strength of ≥ 50 Mpa. At a pressure of 0.2 Mpa, the hydrogen permeability is less than 5 x 10-6 cm³/cm²·min. Through the extension of the carbon fiber framework, we have produced the first flexible graphite bipolar plate in China that can be welded at the edges.

Inquire Now

Carbon Fiber Reinforced Carbon-Plastic Bipolar Plate

Electrode Cloth

Product Details
Contact Us

Name	Unit	Carbon fiber reinforced composite flexible graphite bipolar plate
Thickness	mm	0.6/0.8
Density	g/cm³	1.4-1.6
Width	mm	≤850
Length	mm	≤1300
Extension strength	Mpa	≥50
Compressive strength	Mpa	≥100
Conductivity in the conductive area	S/cm	≥300
Electrical conductivity in the welding area	S/cm	-
Carbon content	%	≥87
Hydrogen transmission rate（0.2Mpa）	cm³/cm²·min	<5x10^-6
Corrosion current	A	<5x10^-6
