Flexible Flow Channel Plate

Product

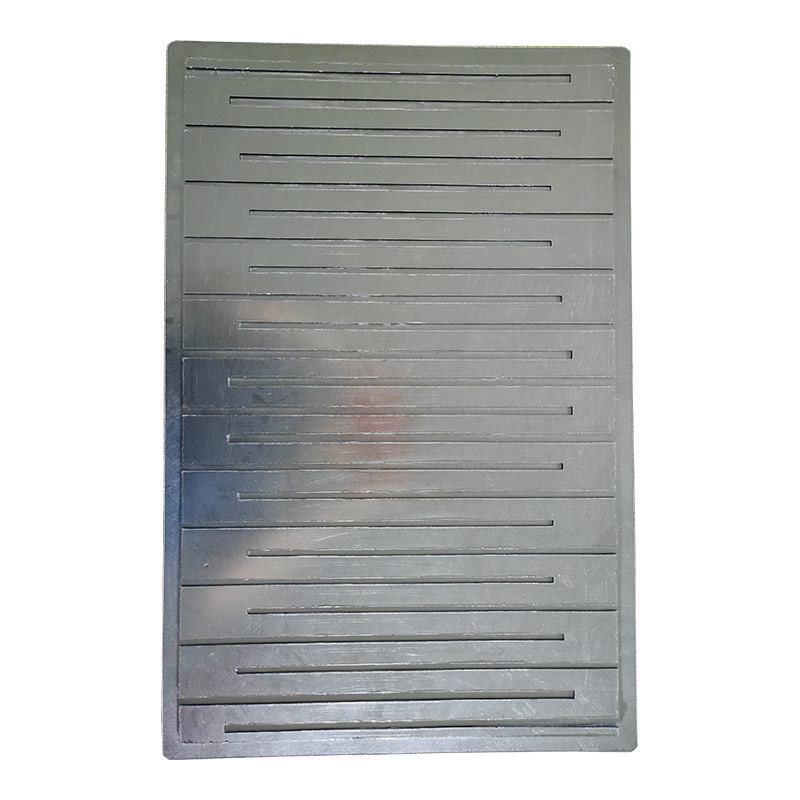

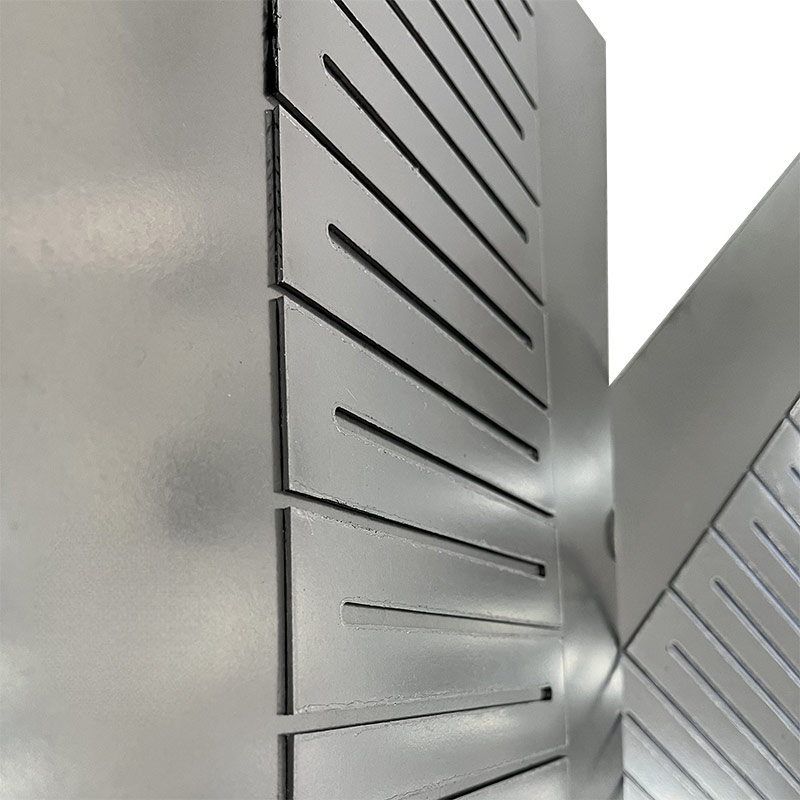

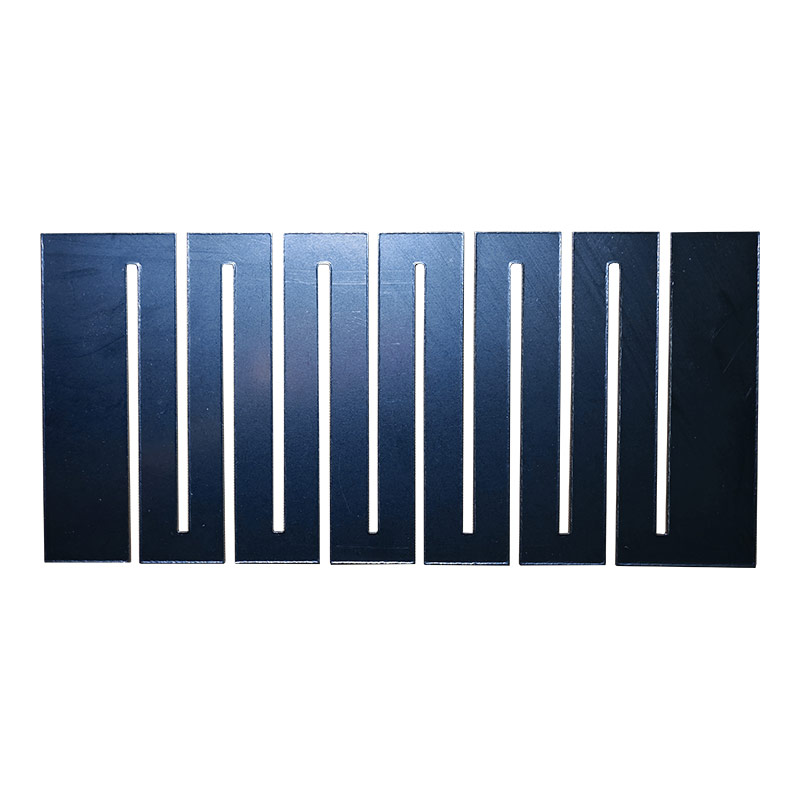

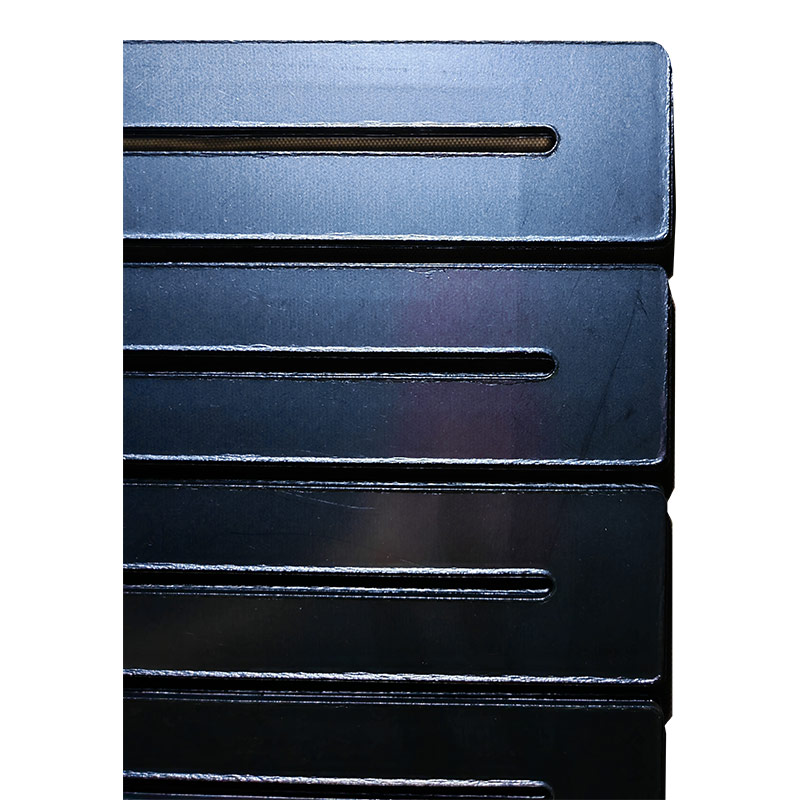

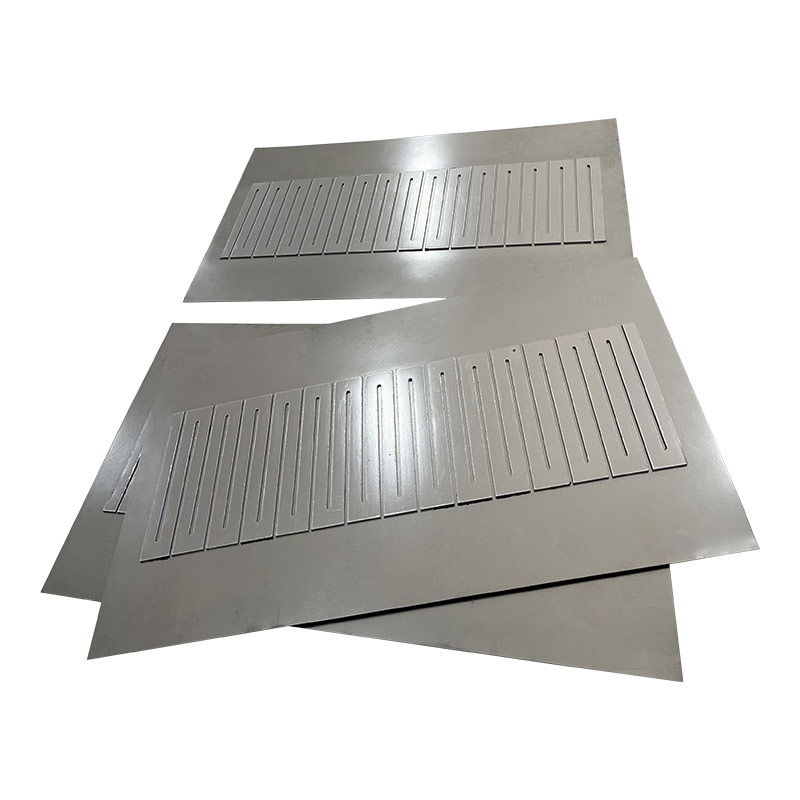

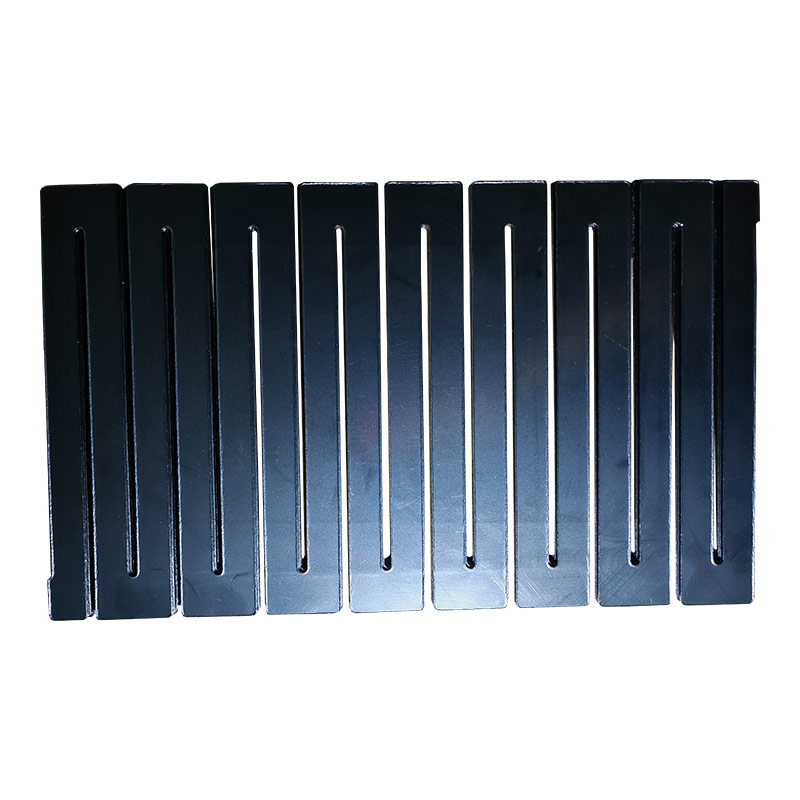

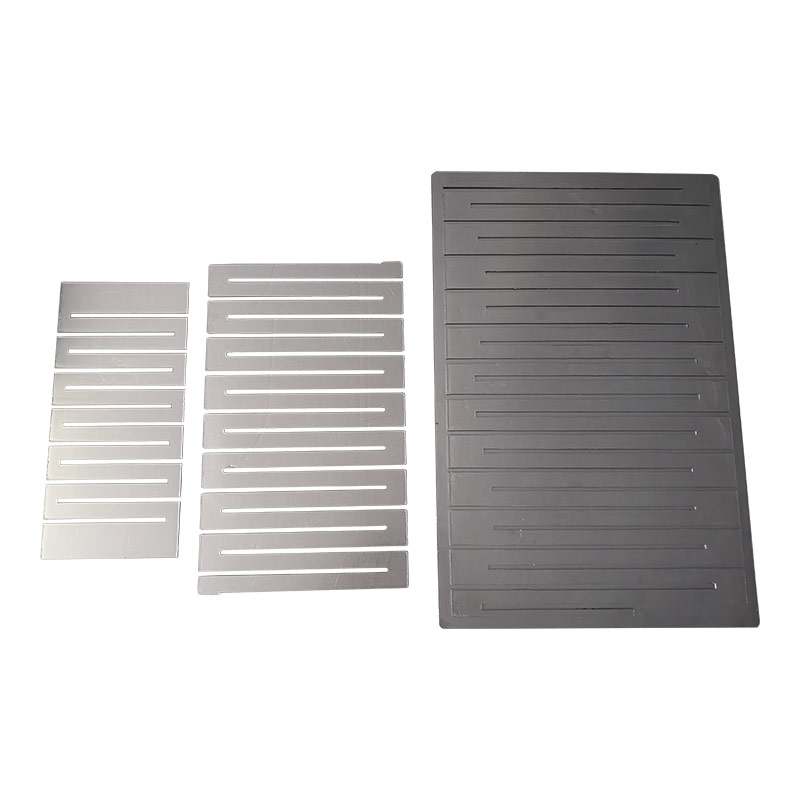

Pure carbon material plates made from expanded graphite under high pressure can be processed into various flow channel structures by die-cutting machines, engraving machines, etc. It features high electrical conductivity, high corrosion resistance, good mechanical strength and low gas permeability. The runner plate is a key component inside a flow battery stack. From the outside, it is usually a flat plate with designed grooves or channels engraved on it. Different designs strike a balance among fluid pressure drop, uniformity of distribution and pump loss. Purity greater than 99%. Tensile strength ≥5Mpa, electrical conductivity ≥200S/cm. The flow channel plates produced by our company have high purity and a density greater than 1.35g/cm2, making their performance more stable.

Inquire Now

Hard Flow Channel Plate

Basalt Reinforced Composite Flexible Graphite Bipolar Plate With Welded Edge

Product Details
Contact Us

Name	Unit	Flexible flow channel plate
Thickness	mm	1.0-2.5
Density	g/cm³	1.35-1.5
Width	mm	≤850
Length	mm	≤1300
Extension strength	Mpa	≥5
Compressive strength	Mpa	≥20
Conductivity in the conductive area	S/cm	≥200
Electrical conductivity in the welding area	S/cm	-
Carbon content	%	≥99.9
Hydrogen transmission rate（0.2Mpa）	cm³/cm²·min	<1x10^-5
Corrosion current	A	-
