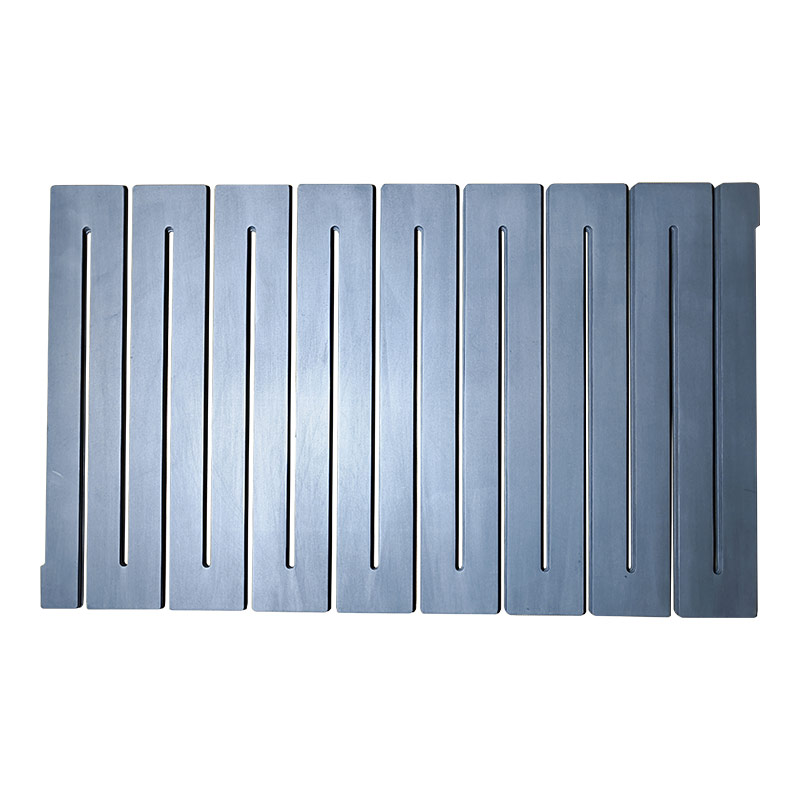

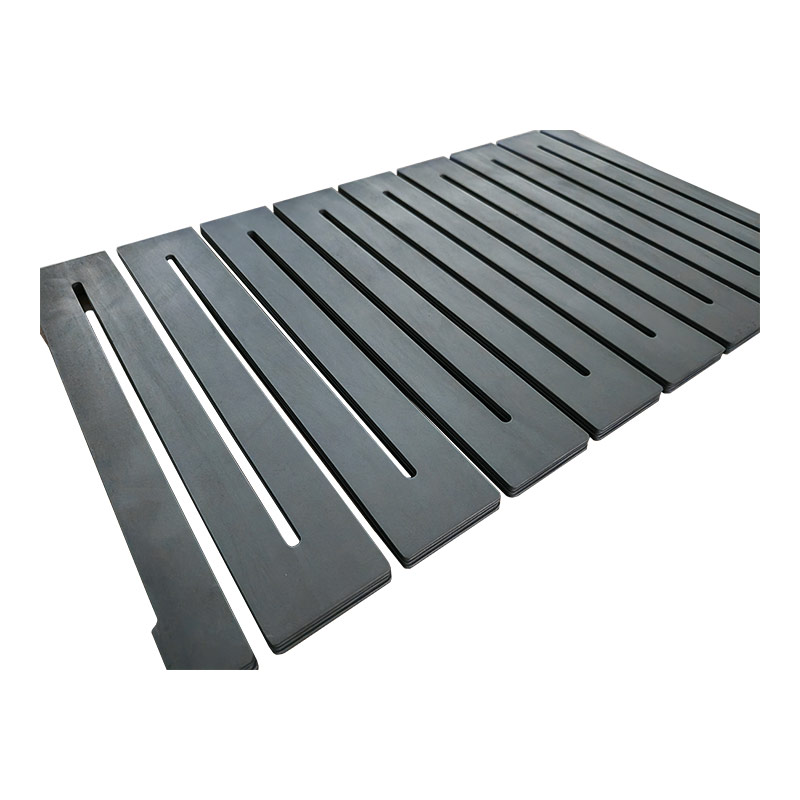

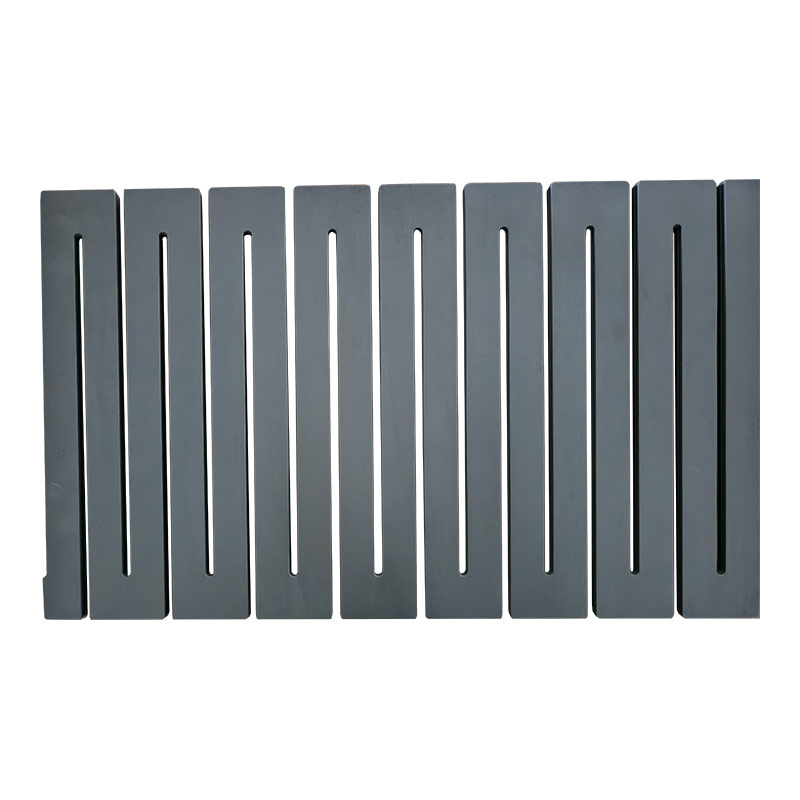

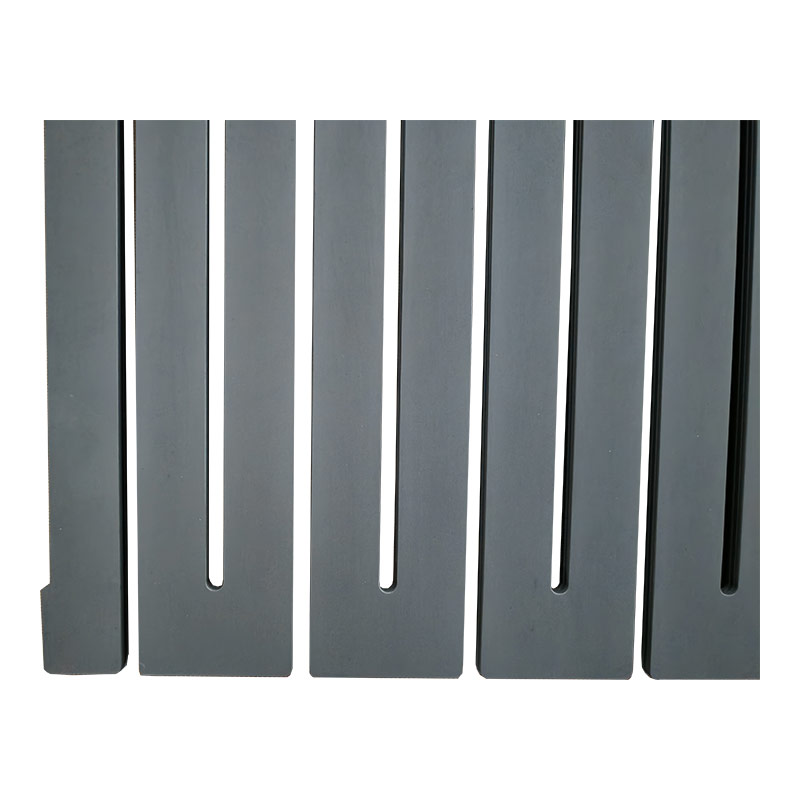

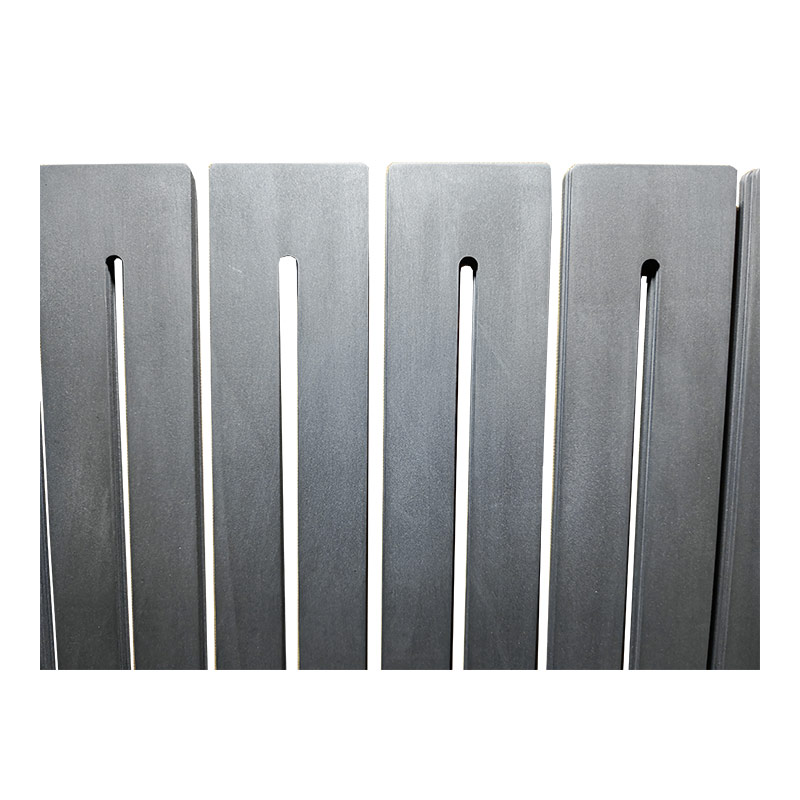

Hard Flow Channel Plate

Product

High-hardness pure carbon material plates are made by resin bonding, high-pressure repeated pressing, impregnation and other processes of asphalt coke and petroleum coke, and then carbonization and graphitization. They have high electrical conductivity, high corrosion resistance and stronger mechanical strength. It can be cut into various flow channel structures by wire cutting. Under any battery operating conditions, it will not cause foaming problems due to the swelling of the electrolyte or hydrogen and oxygen evolution, and has extremely strong stability.

Inquire Now

Conductive Hot Melt Adhesive Web Film

Flexible Flow Channel Plate

Product Details
Contact Us

Name	Unit	Hard flow channel plate
Thickness	mm	1.0-2.5
Density	g/cm³	1.7-1.9
Width	mm	≤1000
Length	mm	≤1500
Extension strength	Mpa	≥30
Compressive strength	Mpa	≥60
Conductivity in the conductive area	S/cm	≥1000
Electrical conductivity in the welding area	S/cm	-
Carbon content	%	≥99.9
Hydrogen transmission rate（0.2Mpa）	cm³/cm²·min	-
Corrosion current	A	-
