Laminated Cured Felt

Product

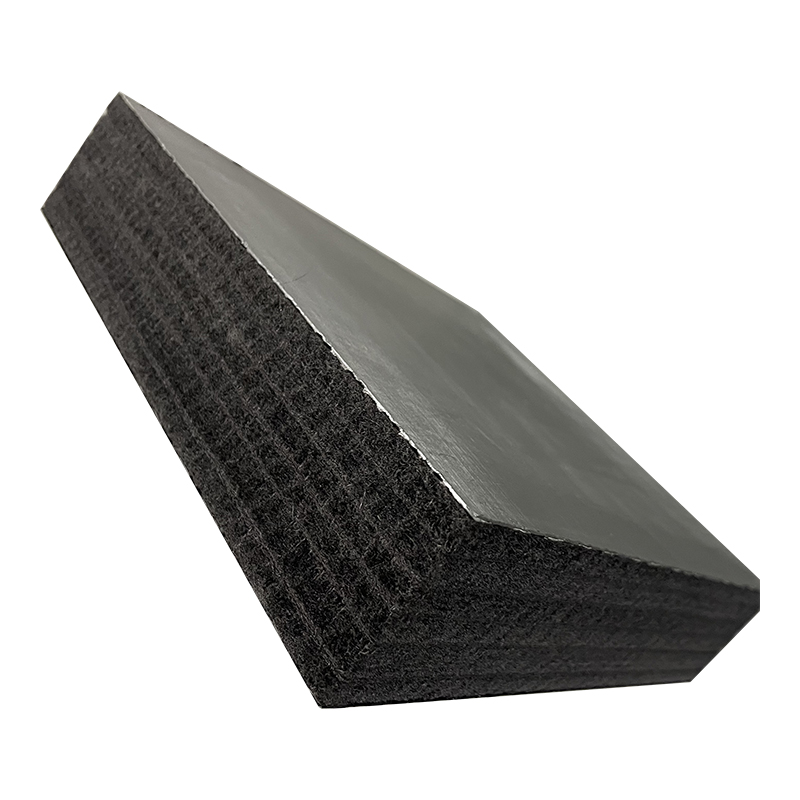

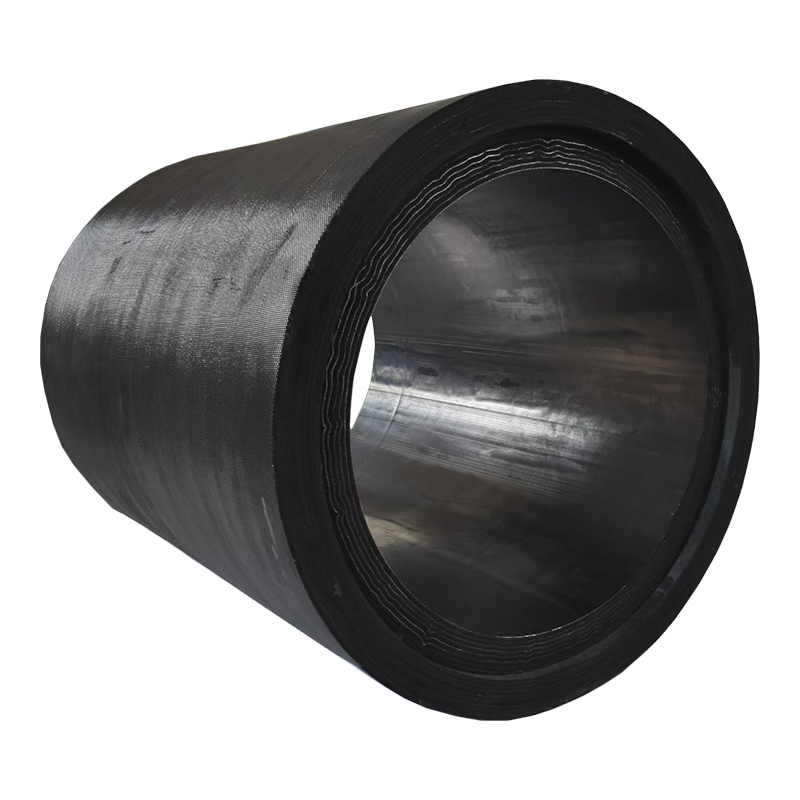

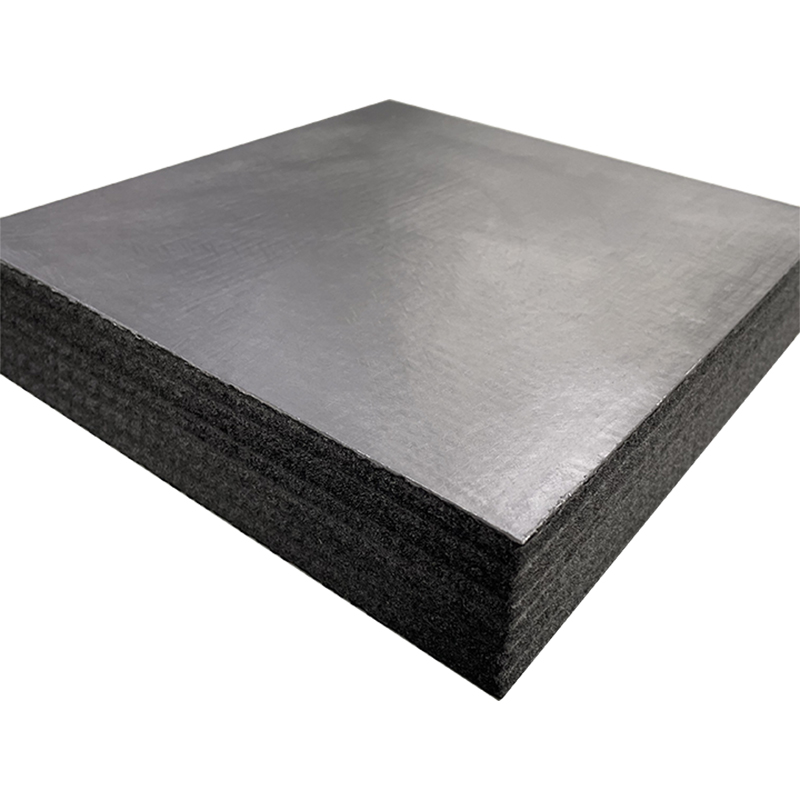

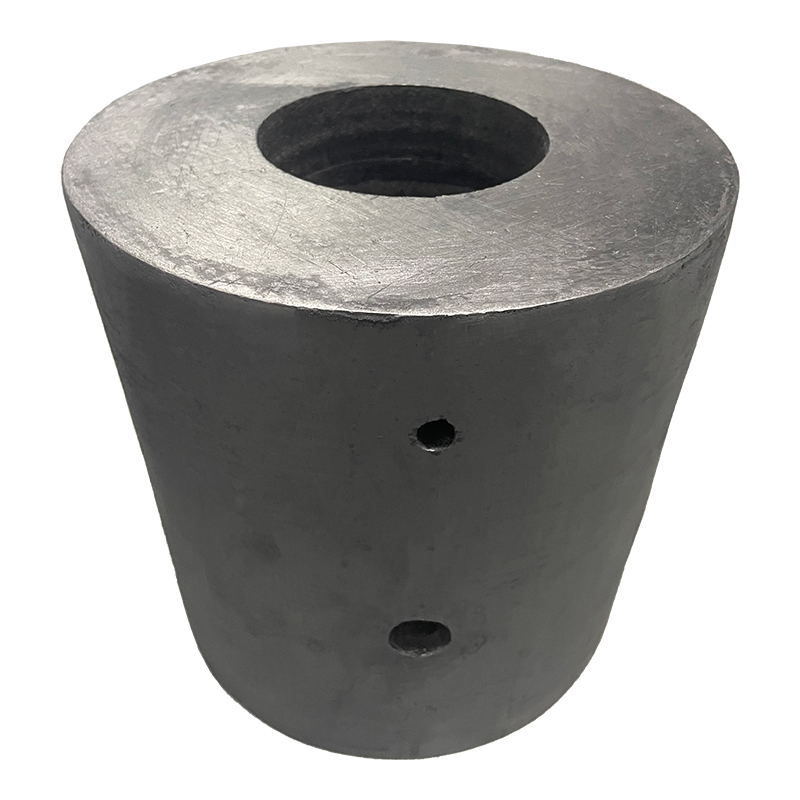

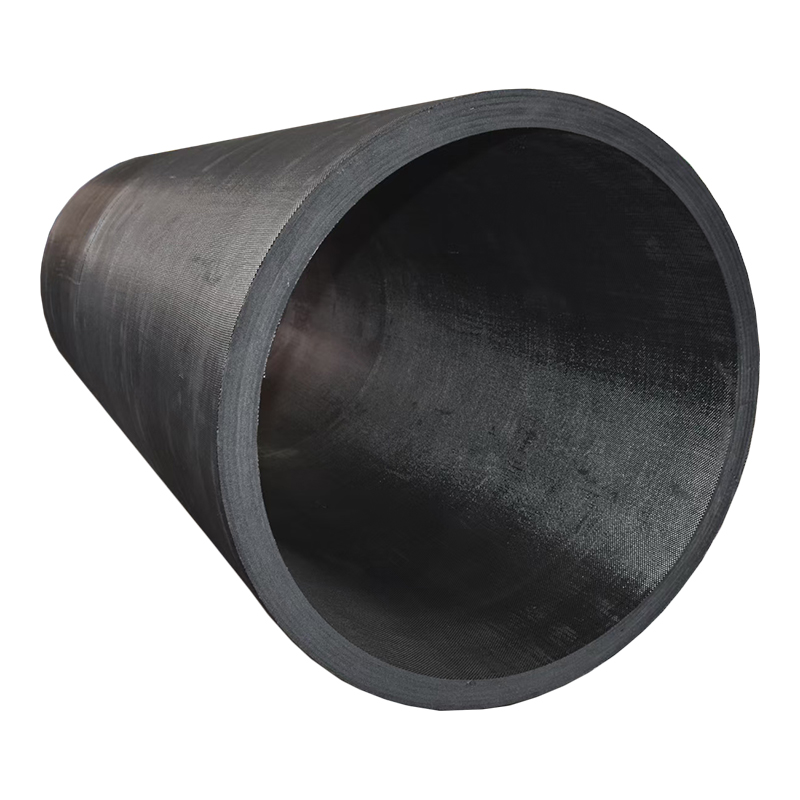

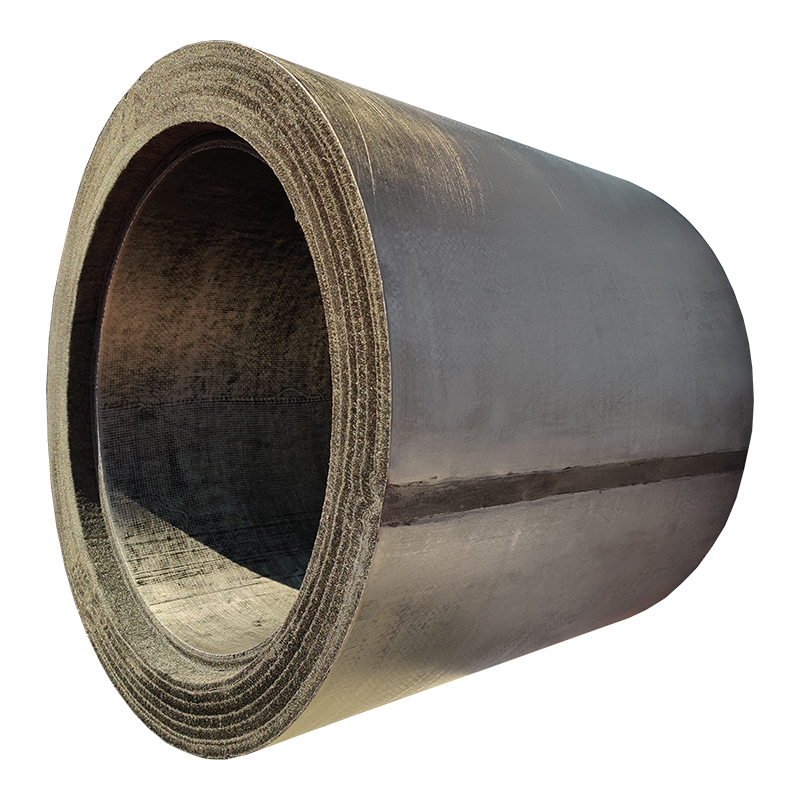

This product is made with PAN-based or viscose-based carbon felt or graphite felt as the base material. It has certain rigidity, self-supporting property, low specific gravity, no short fiber shedding, low thermal conductivity, and a service temperature range of 1500-3200℃. It is applicable to various furnace types such as high-pressure gas quenching furnaces, pressure sintering furnaces, silicon carbide recrystallization furnaces, monocrystalline silicon pulling furnaces, and polycrystalline silicon ingot casting furnaces. It can be provided in various shapes such as plates, discs, and cylinders. It has a long service life and is easy to install and dismantle. It can withstand high temperatures up to 3200℃ for a long time. Thermal conductivity ≤0.25W/m·k.

Inquire Now

Integral Needle-Punched Cured Felt

Viscose-Based Graphite Felt

Product Details
Contact Us

Name	Unit		Laminated cured felt		Remarks
			Carbon felt	Graphite felt
Thickness	mm		5-300	5-300	Other specifications can be customized according to customer needs
Density	g/cm³		≤0.2	≤0.25
Width/Diameter	mm		≤1800	≤1800
Length/Height	mm		≤2400	≤2400
Extension strength	Mpa		≥1	≥1
Compressive strength	Mpa		≥3	≥3
Thermal conductivity	W/m·k	1200℃	≤0.15	≤0.2
		1500℃	≤0.18	≤0.25
Carbon content	%		≥95.0	≥99.80
Heat treatment temperature	℃		≥950	≥1800
Ash content	ppm		≤2000	≤300
