PAN-Based Graphite Felt

Product

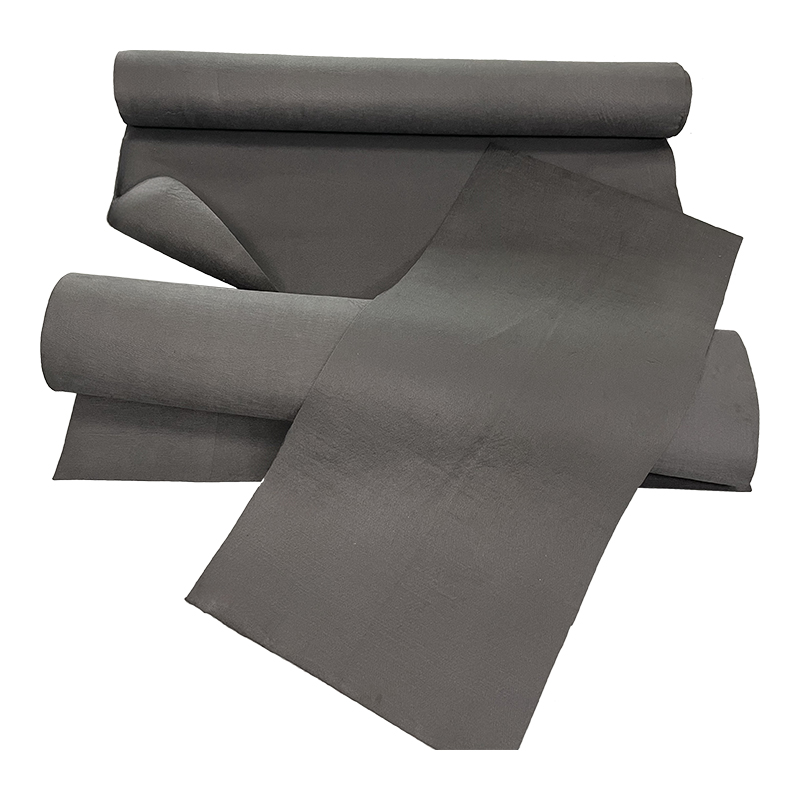

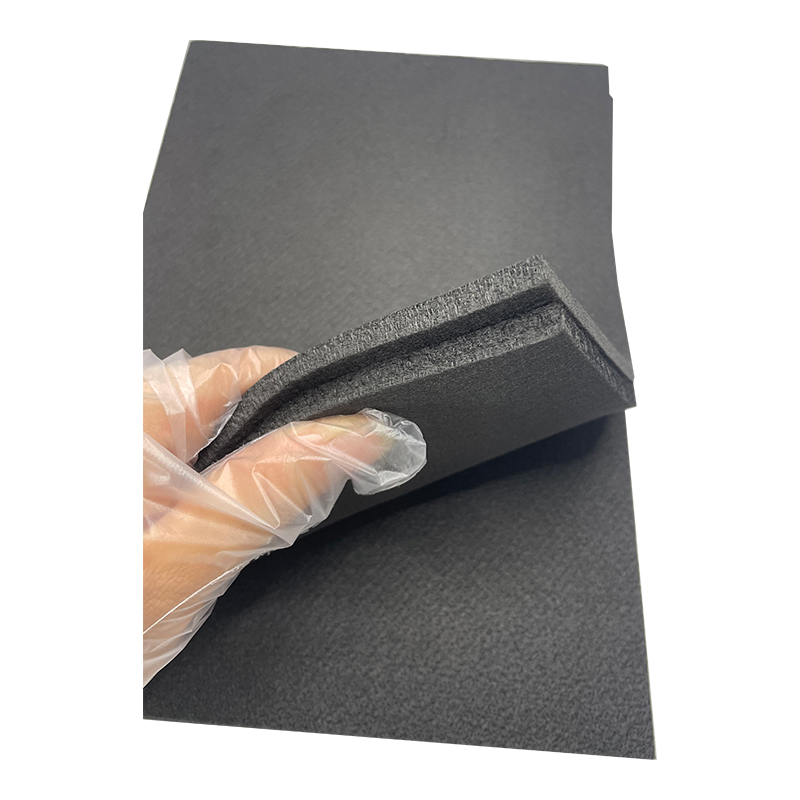

Polyacrylonitrile-based (PAN) graphite felt is a fluffy and porous carbon material made from polyacrylonitrile-based (PAN) carbon felt through high-temperature graphitization treatment at 2200℃. It features superior high-temperature resistance, higher chemical inertness and oxidation resistance, better electrical and thermal conductivity, as well as a lower coefficient of thermal expansion. It can withstand high temperatures up to 3200℃ for a long time. Thermal conductivity ≤0.3W/m·k.

Inquire Now

Viscose-Based Graphite Felt

PAN-Based Carbon Felt

Product Details
Contact Us

Name	Unit	PAN-Base	Remarks
		Graphite felt
Thickness	mm	3.0-10.0	Other specifications can be customized according to customer needs
Density	g/cm³	0.08-0.12
Width	m	1.3-1.6
Breaking strength	Mpa	≥0.4
Carbon content	%	≥99.80
Heat treatment temperature	℃	≥1800
Fiber shedding rate	%	≤0.5
Specific surface area	m²/g	0.5-1.5
Ash content	ppm	≤300

Related Products

About us

Jiaxing Naco New Material Co.,Ltd.

Jiaxing Naco New Material Co., Ltd. / Bohe New Material Co., Ltd. (Jiaxing/Nanchang) was co-founded by the Institute of New Energy Jiashan, Zhejiang Fangxiang Group, and Guangdong Haihua Technology. Jiaxing Naco New Material Co., Ltd. is China Wholesale Pan Base Carbon Fiber Graphite Felt Manufacturers and PAN-Based Graphite Felt Suppliers. The company is dedicated to the R&D, production, and sales of special carbon electrode materials and products, providing customers with optimized process solutions. Our products are applied in industrial sectors such as water electrolysis for hydrogen production, flow batteries, zinc-ion batteries, air batteries, and high-temperature thermal fields. We offer Thermal Insulation Felt for sale.
