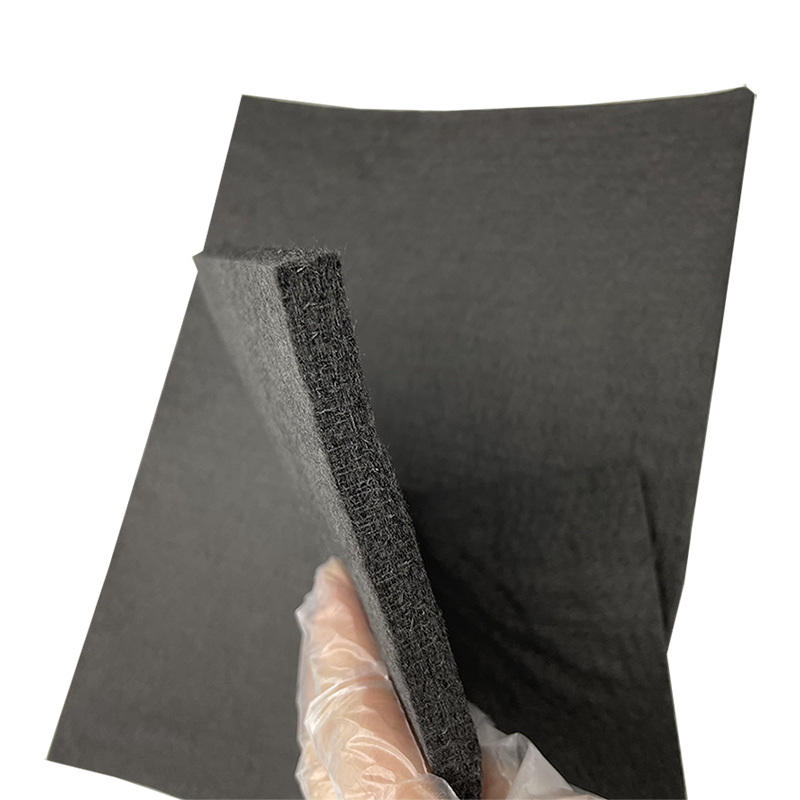

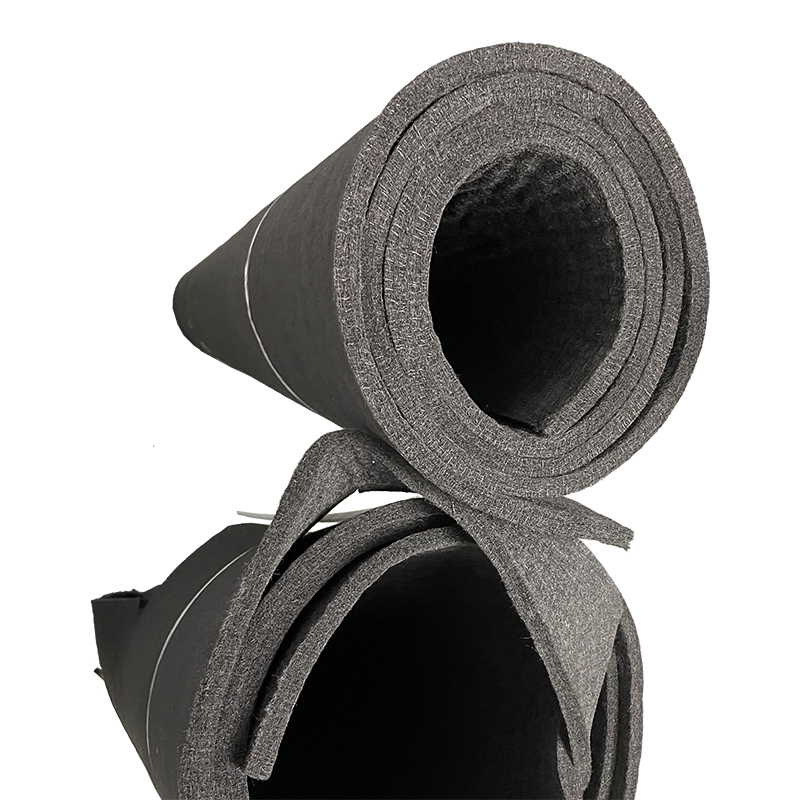

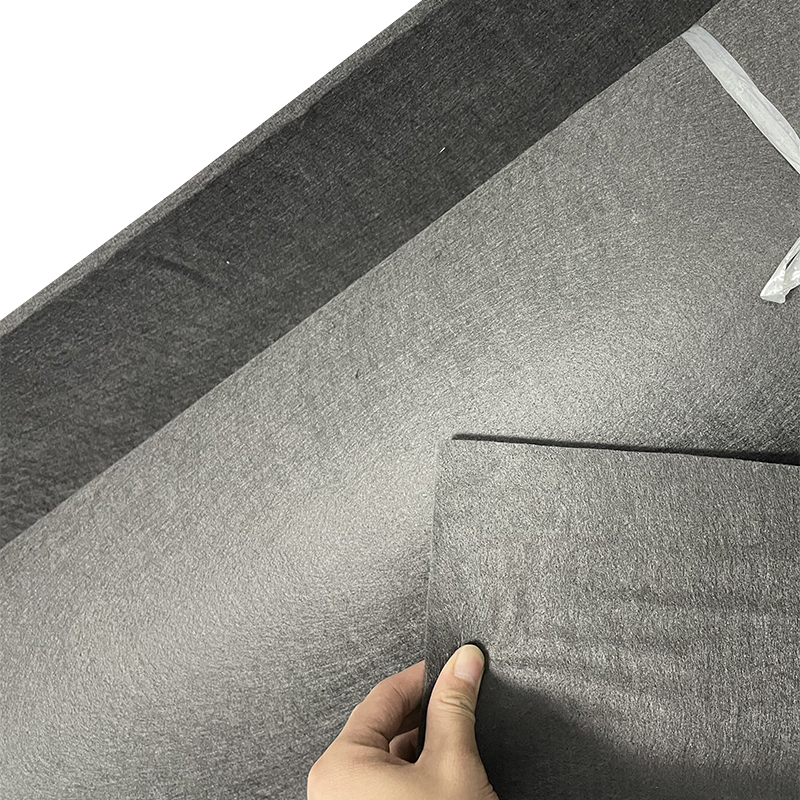

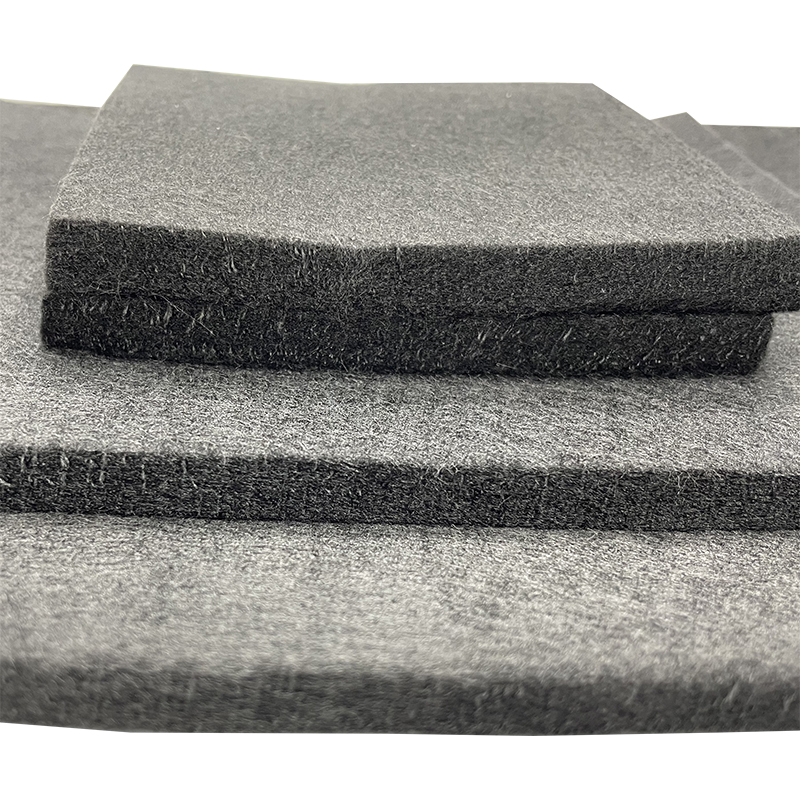

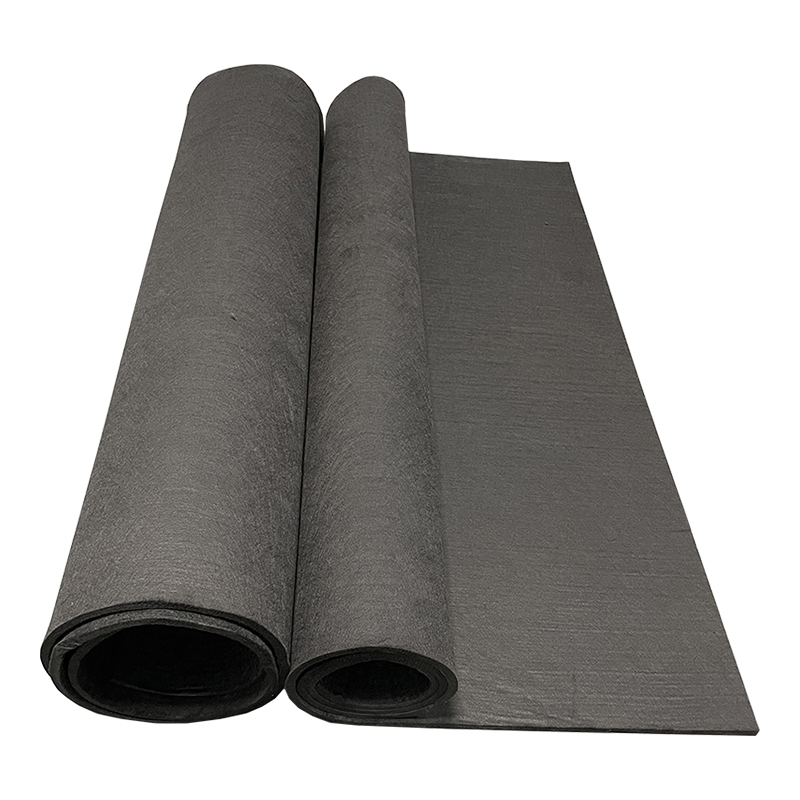

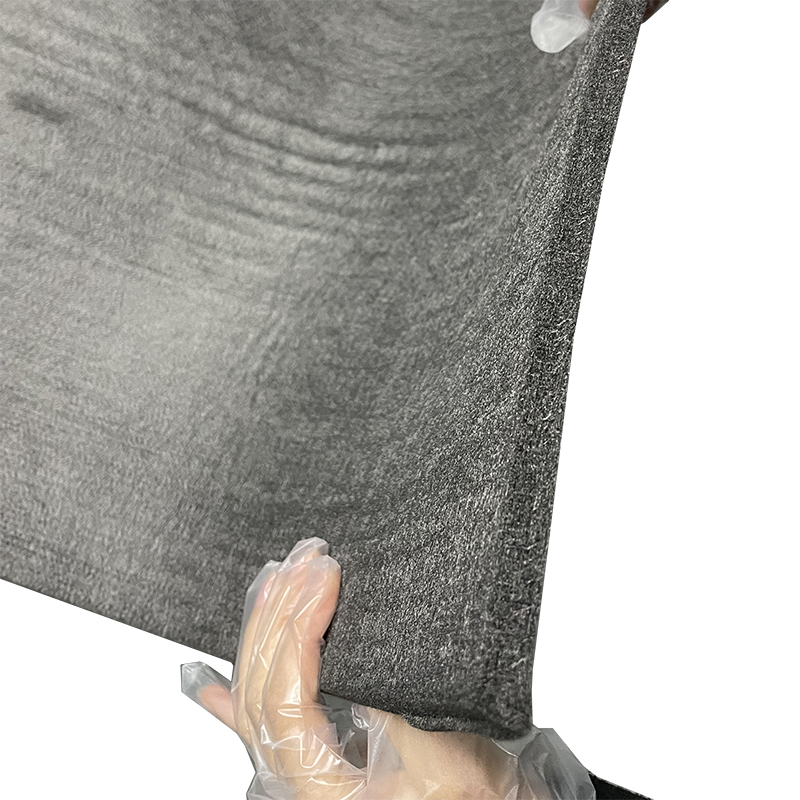

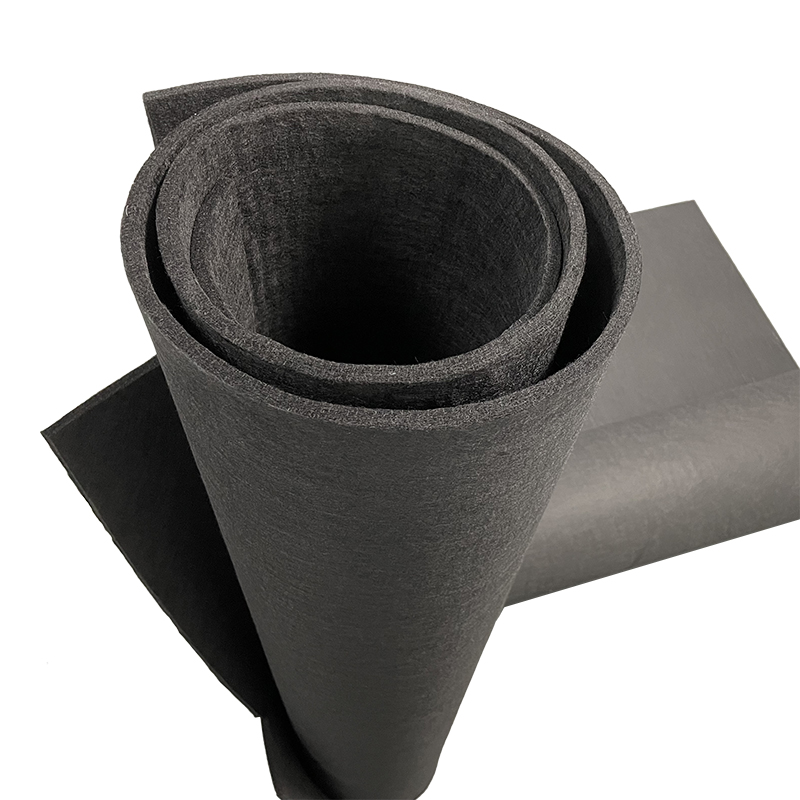

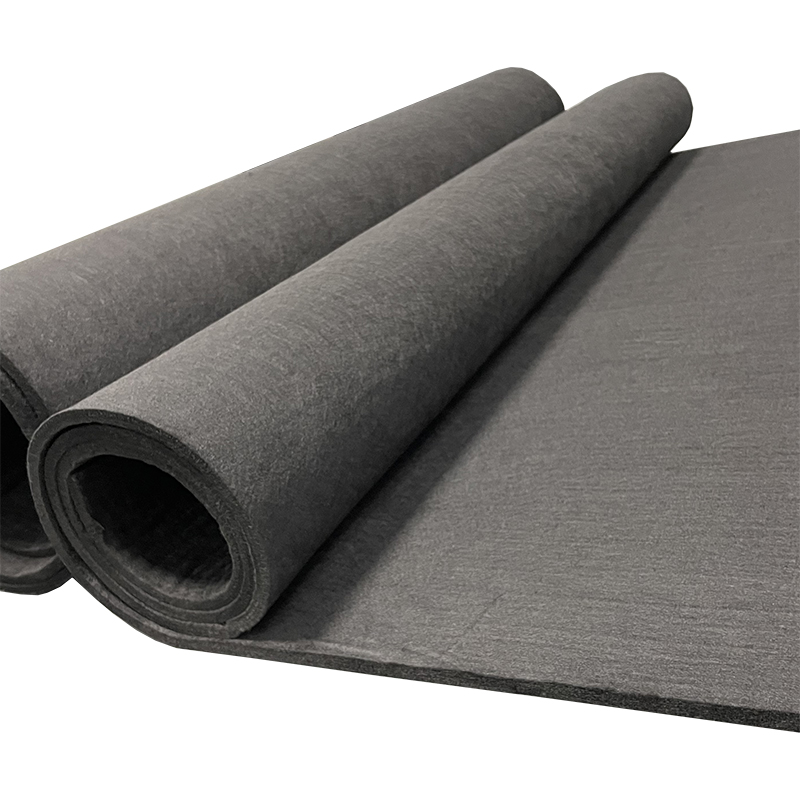

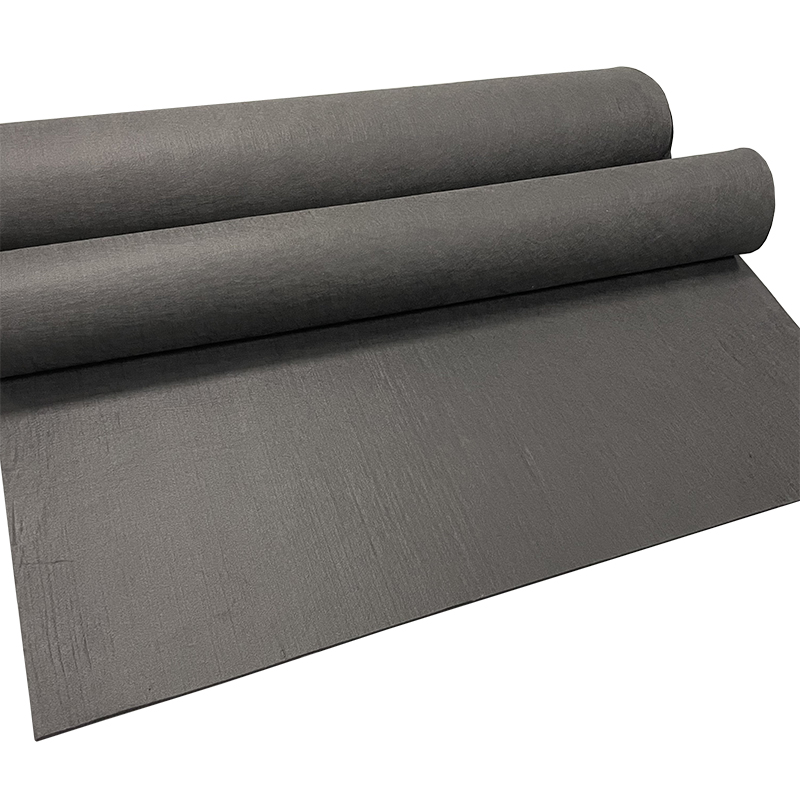

PAN-Based Carbon Felt

Product

Polyacrylonitrile-based (PAN) carbon felt is a fluffy and porous carbon material made by using PAN precursor as the precursor, through needling process, and then carbonization at 1200℃. It perfectly inherits the inherent excellent properties of carbon fiber, including outstanding high-temperature resistance, extremely high chemical inertness, excellent electrical and thermal conductivity, as well as a low coefficient of thermal expansion. It can withstand high temperatures up to 1500℃ for a long time. Thermal conductivity ≤0.25W/m·k.

Inquire Now

PAN-Based Graphite Felt

Viscose-Based Carbon Cloth Graphite Cloth

Product Details
Contact Us

Name	Unit	PAN-Base	Remarks
Name	Unit	Carbon felt	Remarks
Thickness	mm	3.0-10.0	Other specifications can be customized according to customer needs
Density	g/cm³	0.09-0.13
Width	m	1.3-1.6
Breaking strength	Mpa	≥0.45
Carbon content	%	≥95.0
Heat treatment temperature	℃	≥950
Fiber shedding rate	%	≤0.5
Specific surface area	m²/g	0.7-2
Ash content	ppm	≤2000
