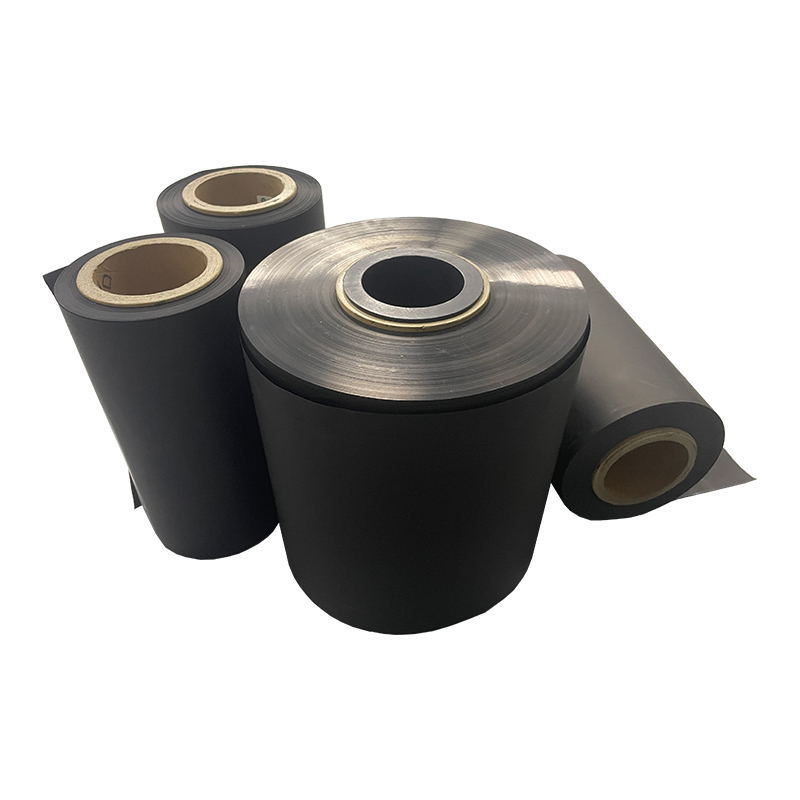

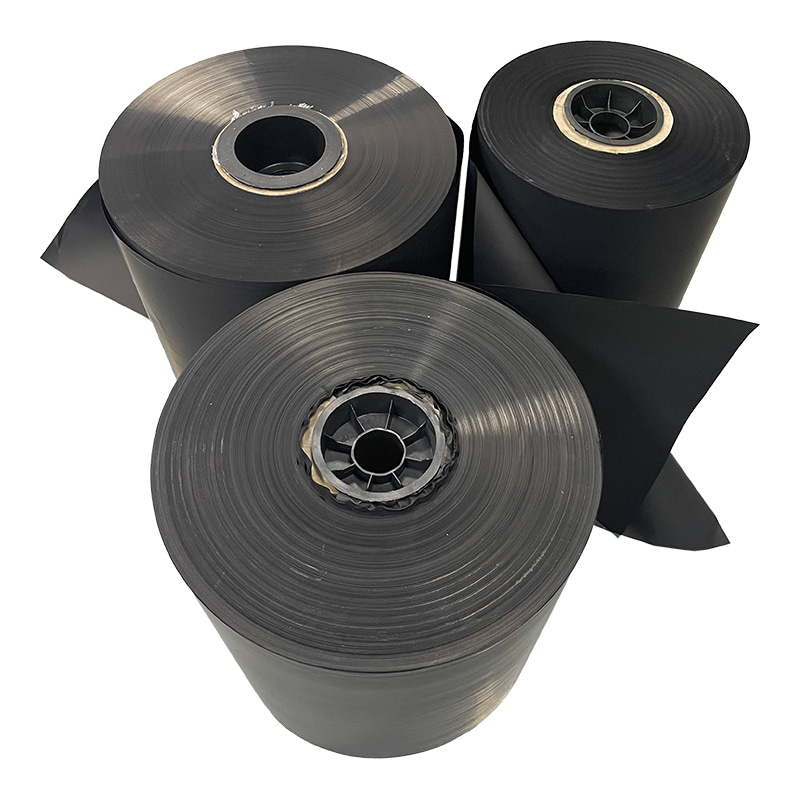

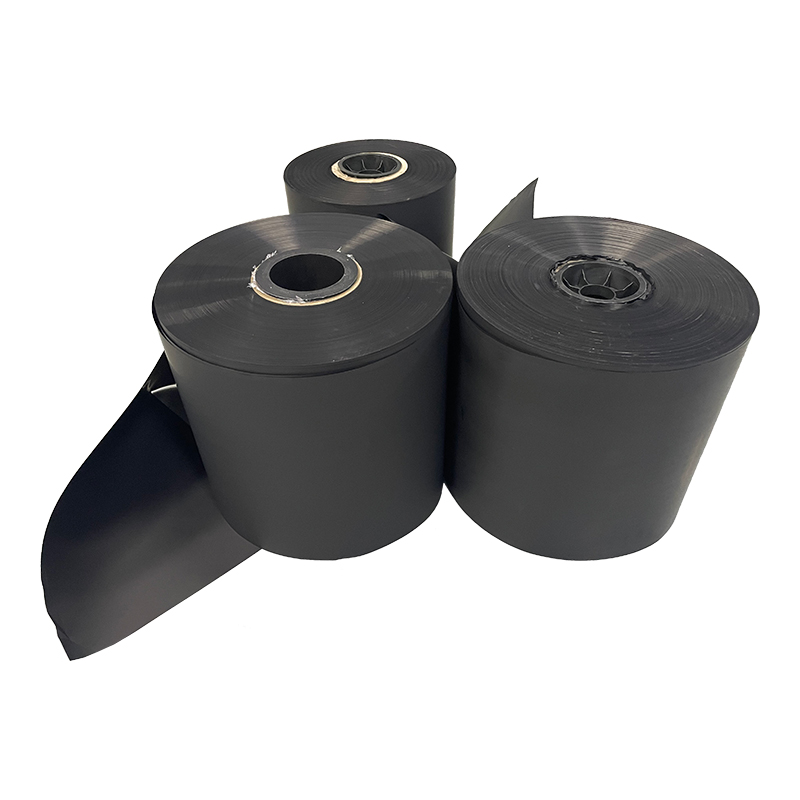

Conductive Carbon Film

Product

Carbon nanotubes, carbon black and other powders are mixed with PU or PE and other auxiliary materials through an internal mixer, and then granulated. The fabricated particles are processed into films through a blown film machine or a casting machine. It features high electrical conductivity, high flexibility and other characteristics. It can be widely applied in various fields such as physiotherapy electrodes, electric heating, and battery current collection protection.

Inquire Now

Digital Printing Primer

Oil-Based Conductive Agent

Product Details
Contact Us

Name	Unit	PU	PE	Remarks
Thickness	mm	0.05-0.2	0.05-0.1	Other specifications can be customized according to customer needs
Density	g/cm³	1.0-1.5	1.0-1.5
Width	mm	≤1500	≤1200
Breaking strength	Mpa	≥0.5	≥0.8
Carbon content	%	≥30	≥40
Square resistance value	Ω/□	5-600	80-2×109
